Deploy Velocloud virtual Edge in Azure (the manual way)

Login to the VCE Demo-Azure01 at the serial console

At the VM Demo-Azure01, go to “Connect” -> “Connect” -> “More ways to connect” -> “Serial console” and click on the “Go to serial console”:

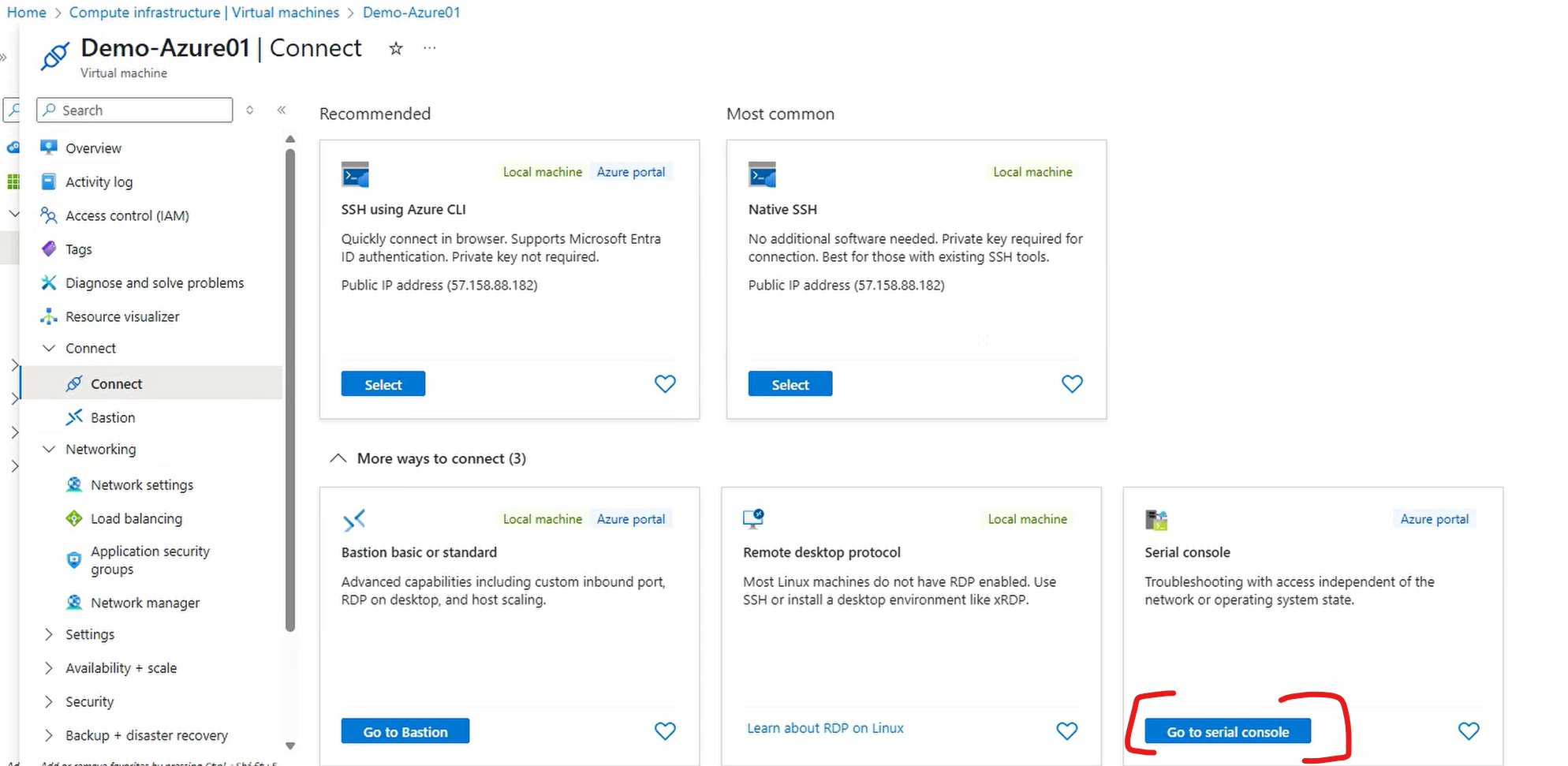

Figure 47 – Go to serial console

Press enter and the login prompt like the following appear:

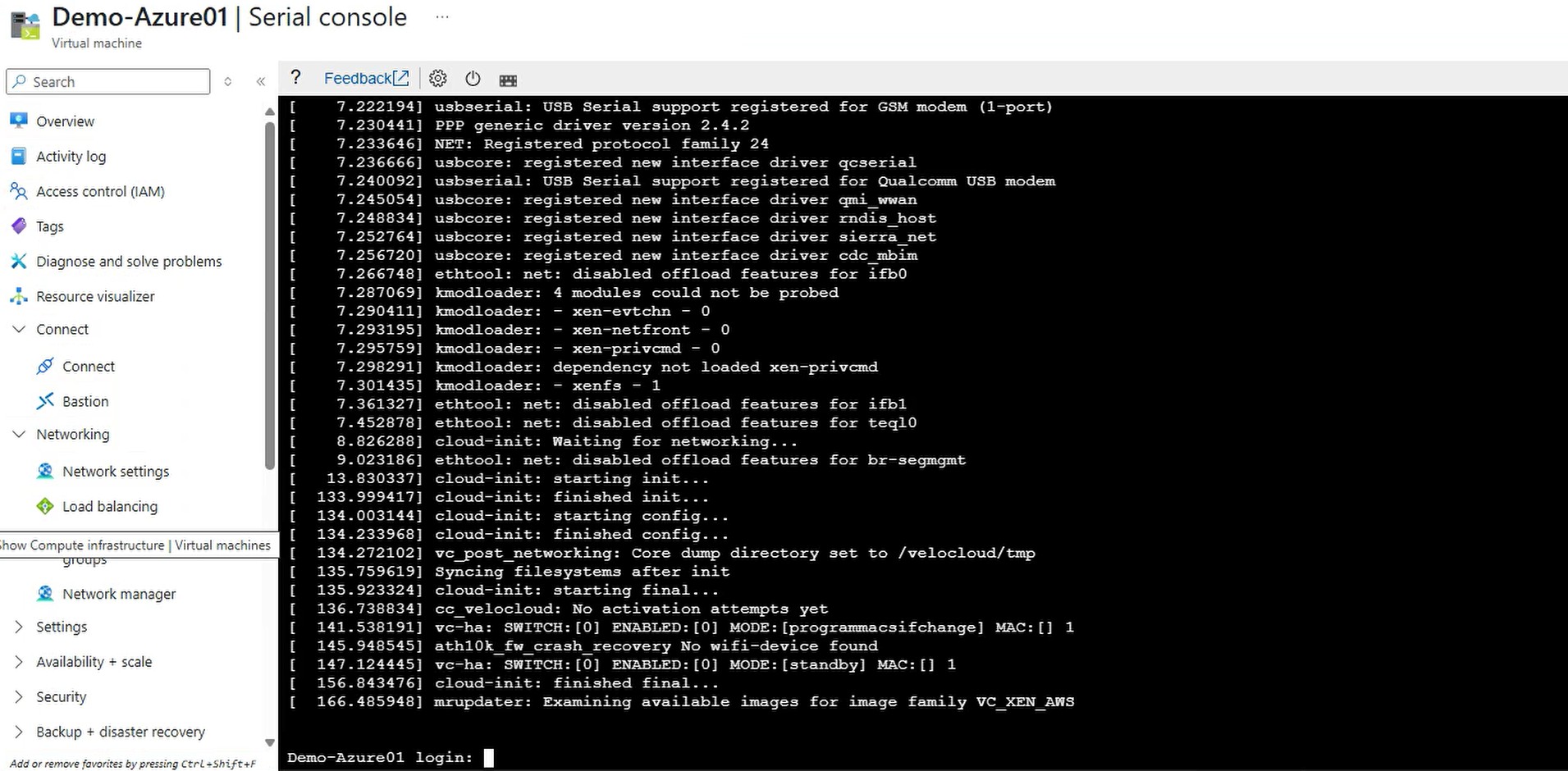

Figure 48 – serial console login prompt

Login with the corresponding username and password, in this article, the username is “azureuser”, password is “velocloudsdwan2”. After login, can issue a command “sudo ls -l /etc/sudoers.d/” to confirm the sudo is allowed.

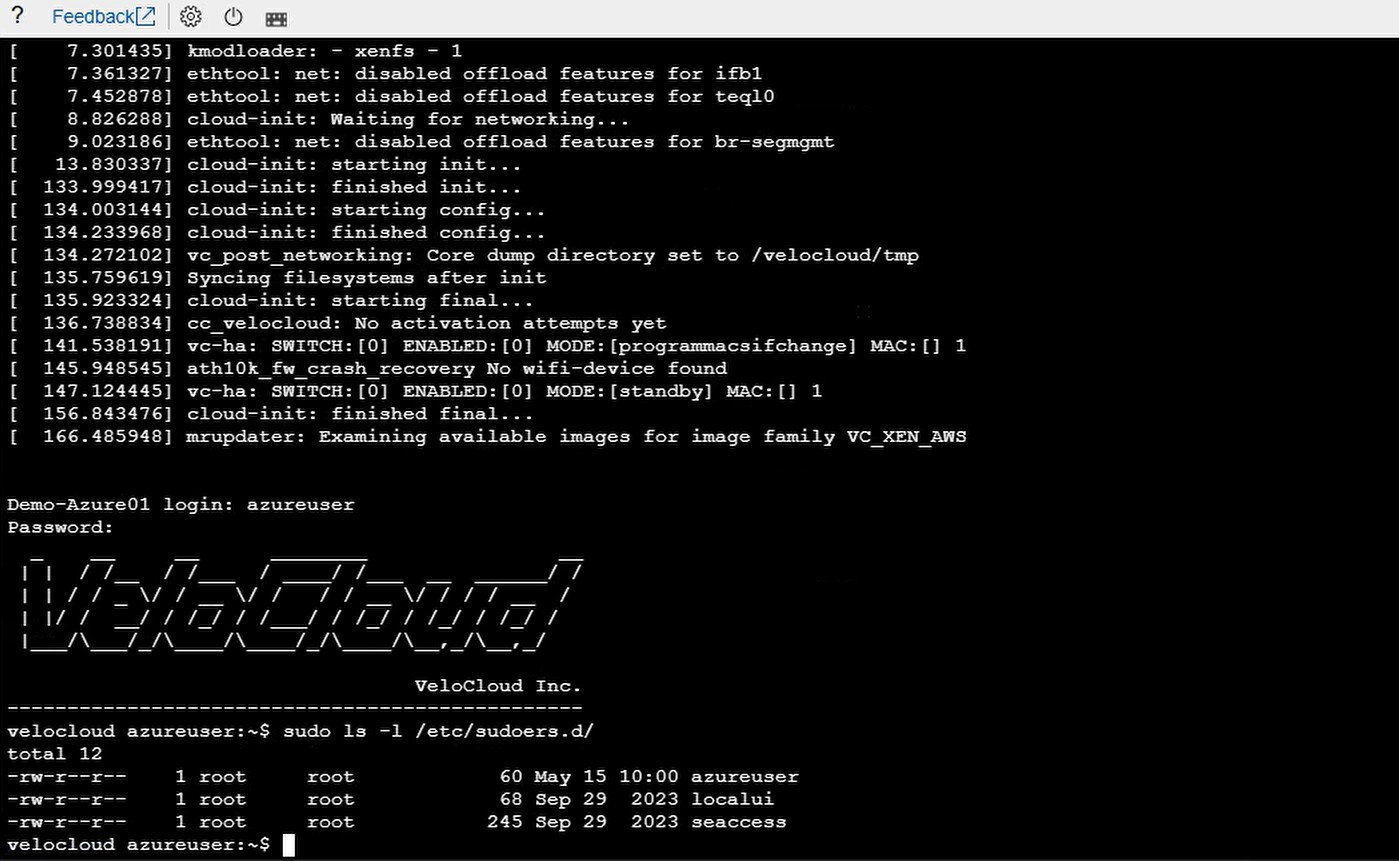

Figure 49 – logged in the serial console, sudo is successful

Now, create the VCE at the VCO, so this Demo-Azure01 can be activated.
